Model
|
CFM*
|
PSIG
|
HP-Gas/Diesel
|
5406BA
|
13.1
|
5000
|
14/15
|
5407BA
|
18.7
|
5000
|
23/20
|
5408BA
|
25.3
|
5000
|
NA/30
|
5409BA
|
30.6
|
5000
|
NA/30
|
|
-

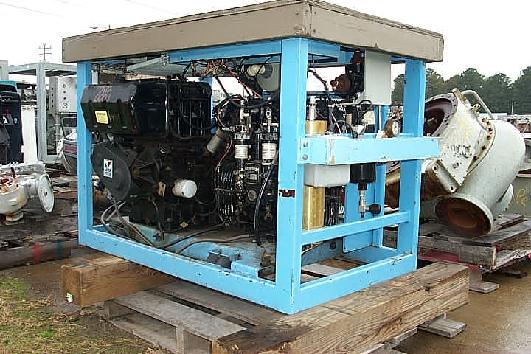

Welded steel frames with rubber inner suspended compressor and motor
baseplate.
-
Exclusive "V" configured 4-stage compressors with rings on all stage
for maximum compression efficiency.
-
6000 psi maximum pressure is available.
-
Expanded metal cabinet enclosure provides an aesthetically appealing
appearance while providing maximum operator safety.
-
Lister diesel engine.
-
Full instrumentation on an "up-front" operations panel.
-
Auto condensate drain system is standard.
-
Hinged maintenance access panels.
-
Purification system to CGA Grade "E" standards.
-
All pressure bearing components are inside the cabinet for operator
safety.
-
The motor and compressor are mounted on an inner baseplate isolated
from the outer frame to reduce system vibration.
-
|
