Davey Scuba Compressors Parts Breakdown

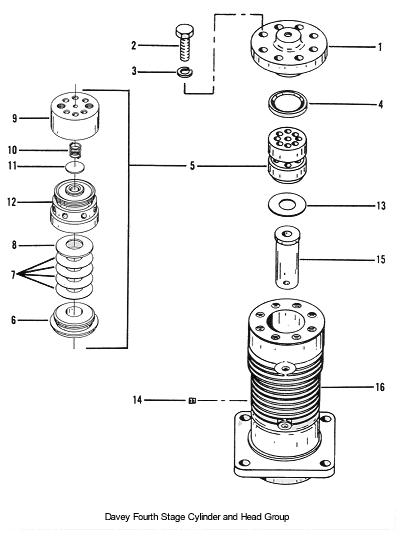

Fourth Stage Cylinder and Head Group



FIG#

PART#



DESCRIPTION

1

44838



HEAD, FOURTH STAGE

2



BOLT

3



LOCK WASHER

4

28340

**

GASKET, CYLINDER HEAD

5

28156



VALVE, COMPLETE

6



VALVE, LOWER (NOT SOLD SEPARATELY)

7



*

SPRING, LENTOID

8



*

RING, VALVE

9



VALVE, UPPER (NOT SOLD SEPARATELY)

10



*

SPRING, VALVE

11



*

DISC, VALVE

12



VALVE, MID (NOT SOLD SEPARATELY)

13

28349

**

GASKET, VALVE

14



PLUG

15

44835



LINER, FOURTH STAGE

16

44837



CYLINDER, FOURTH STAGE

17

45222



CYLINDER WITH LINER




66493

*

REPAIR KIT, FOURTH STAGE VALVE



65888

**

COMPONENT OF KIT # 65888, GASKET AND SEAL KIT
