Davey Scuba Compressors Parts Breakdown

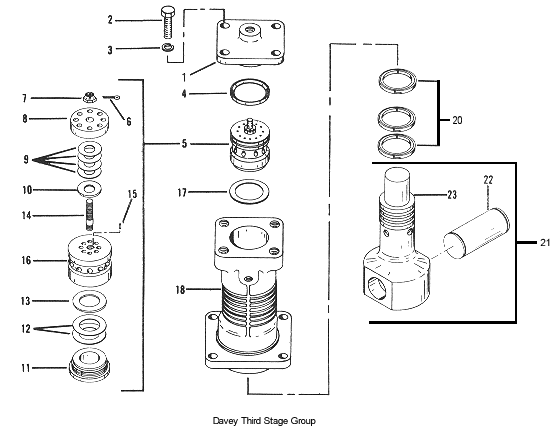

Third Stage Head, Cylinder, and Piston Group

FIG#

PART#



DESCRIPTION

1

44840



HEAD, THIRD STAGE

2



BOLT

3



LOCK WASHER

4

28339

**

GASKET, CYLINDER HEAD

5

28155



VALVE, COMPLETE

6



*

COTTER, PIN

7



NUT, CASTLE

8



VALVE, UPPER (NOT SOLD SEPARATELY)

9



*

SPRING, LENTOID

10



*

RING, VALVE

11



VALVE, LOWER (NOT SOLD SEPARATELY)

12



*

SPRING, LENTOID

13



*

RING, VALVE

14



BOLT, VALVE (NOT SOLD SEPARATELY)

15



PIN, DOWEL

16



VALVE, MID (NOT SOLD SEPARATELY)

17

28350

**

GASKET, VALVE

18

44839



CYLINDER, THIRD STAGE

20

65886



RING SET, THIRD STAGE

21

46063



PISTON AND PIN, THIRD STAGE

22

46517



WRIST PIN

23

44841



PISTON




66492

*

THIRD STAGE VALVE REPAIR KIT



65888

**

COMPONENT OF KIT # 65888, GASKET & SEAL KIT
