Davey Scuba Compressors Parts Breakdown

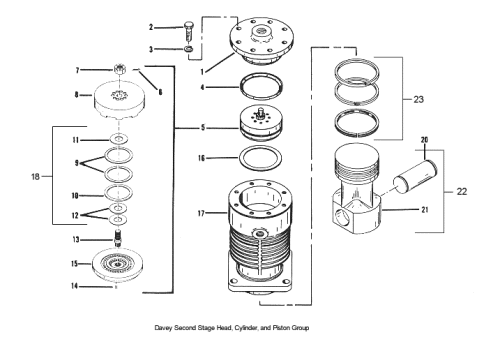

Second Stage Head, Cylinder and Piston Group

FIG #

PART #



DESCRIPTION

1

44843



HEAD, SECOND STAGE

2



BOLT

3



LOCK WASHER

4

44845

**

GASKET, CYLINDER HEAD

5

45033



VALVE, COMPLETE

6



*

COTTER PIN

7



NUT, CASTLE

8



VALVE, UPPER (NOT SOLD SEPARATELY)

9



*

SPRING, LENTOID

10



*

RING, VALVE

11



*

RING, VALVE

12



*

SPRING, LENTOID

13



BOLT, VALVE (NOT SOLD SEPARATELY)

14



PIN, DOWEL

15



VALVE, LOWER (NOT SOLD SEPARATELY)

16

44846

**

GASKET, VALVE

17

44842



CYLINDER, SECOND STAGE

18

*66495



REPAIR KIT, SECOND STAGE VALVE

20

46517



WRIST PIN

21

44849



PISTON

22

46062



PISTON AND PIN, SECOND STAGE

23

65885



RING SET, SECOND STAGE





66495

*

SECOND STAGE VALVE REPAIR KIT



65888

**

COMPONENT OF KIT #65888, GASKET & SEAL KIT
